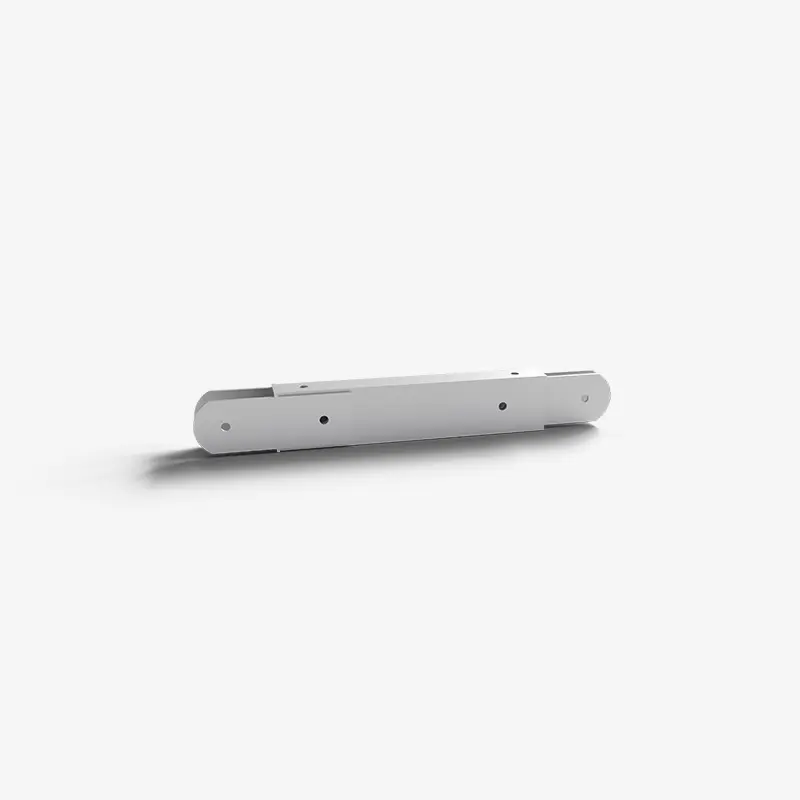

Aluminium Inclinometric Beam – SEGMENT 0.5M
The inclinometric line allows monitoring of overall structural deformations and millimetric displacements over long spans.
Each aluminium beam is mounted on bi-axial articulated supports, providing freedom of movement to track all variations of the structure.
The segments are easy to assemble and can be chained together to cover long distances.
To summarize
See all features
Simple wall-mounted or chained installation, Modular beam assembly from 0.5 to 4 m
Battery life From 1 to 7 years depending on chosen frequency
Angular resolution 0,01°
Measurement range ±30° (or ±10°)
Secure
Monitor all your infrastructures remotely and continuously thanks to our connected sensors, and receive alerts in case of issues.
Connected
Connect your sensors directly to a free, user-friendly mobile app to monitor all your structures continuously.
Plug & Play
Easy to install – from a few minutes to a few seconds, your sensors can be mounted on any type of material.
Inclinometric Line
The inclinometric line allows continuous measurement of horizontal deformations with millimetric precision. It provides a complete view of displacements along the entire instrumented height — ideal for sensitive structures or deep foundations.
Permanently installed inside an inclinometric tube, the chain operates without the need for regular human intervention. It offers a reliable alternative to manual measurements, ideal for long-term projects or hard-to-reach areas.
Designed with aluminium beams articulated on two axes, the line adapts to structural variations. The elements can be assembled quickly without special tools and chained together to cover long distances.
Alimentation
Piles 3,6V - 2,6Ah
Mesure, Précision, Résolution
Plage de mesure ±30° (+ou-10°)
Précision angulaire 0,005°
Résolution angulaire 0,01°
Connectivité
Réseau LPWAN
Bluetooth
Mémoire interne
Jusqu'à 250 000 mesures
Dimensions & Poids
Assemblage modulaire poutres de 0.5 à 4 m
Protection
IP66 (Résistant à la poussière et aux fortes projections d'eau)
