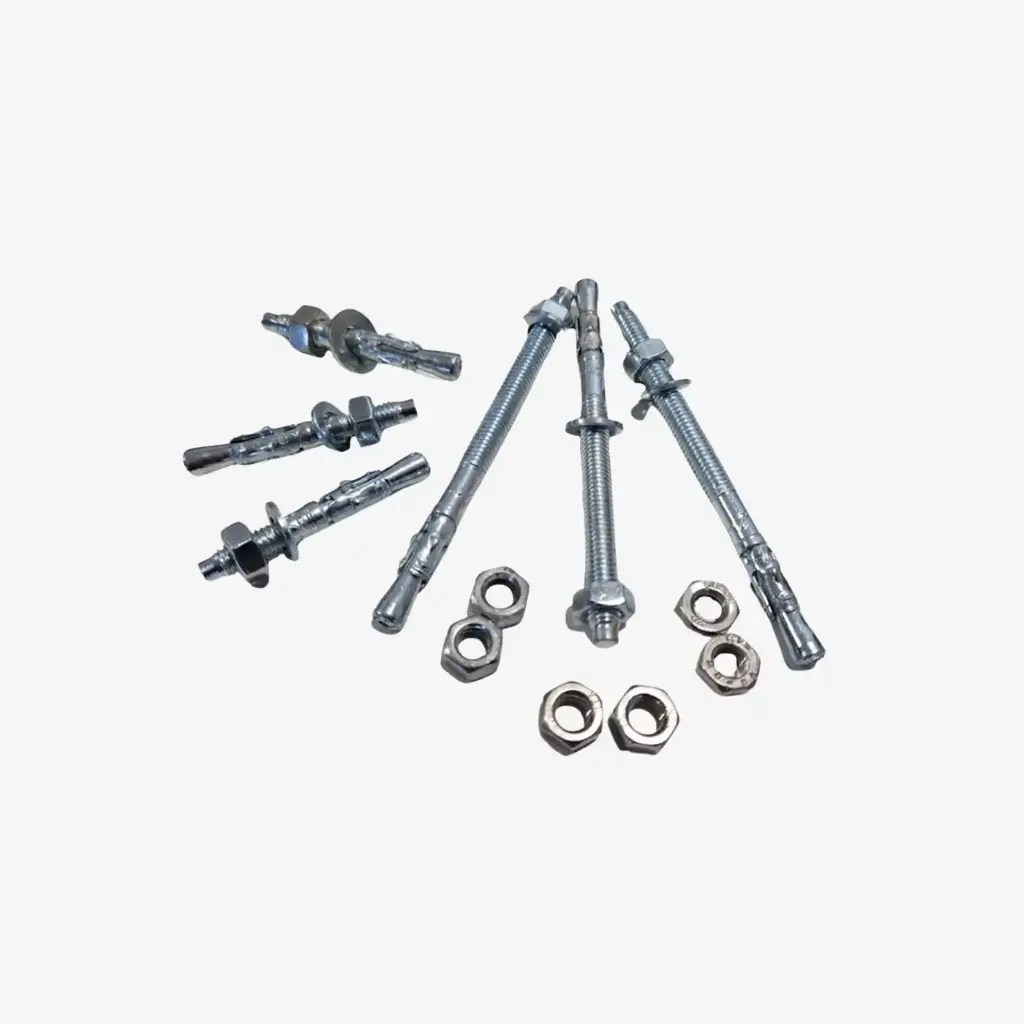

Pack Fixation 4

Solid Support with Anchor Studs for DELTA L+

This support is designed for installing a DELTA L+ crack sensor on solid materials such as concrete, brick, or stone.

Features:

• Galvanized hammer-in anchor studs, ideal for a strong and durable anchor.
• Compatible with DELTA L+ installation, thanks to the direct attachment of the integrated ball joint on the short anchor stud.

• Simple Installation:

  • Drill a Ø6 mm hole in the material.
  • Hammer the anchor stud into the hole.
  • Tighten the nut (using a 10 mm wrench) to secure the stud in the material.

• Installation Precautions:

  • Avoid striking the stud head too hard.
  • Ensure the nut is tightly secured to provide effective anchorage.
• Removal: Cut the anchor stud flush using a grinder, leaving the metal in the material.
