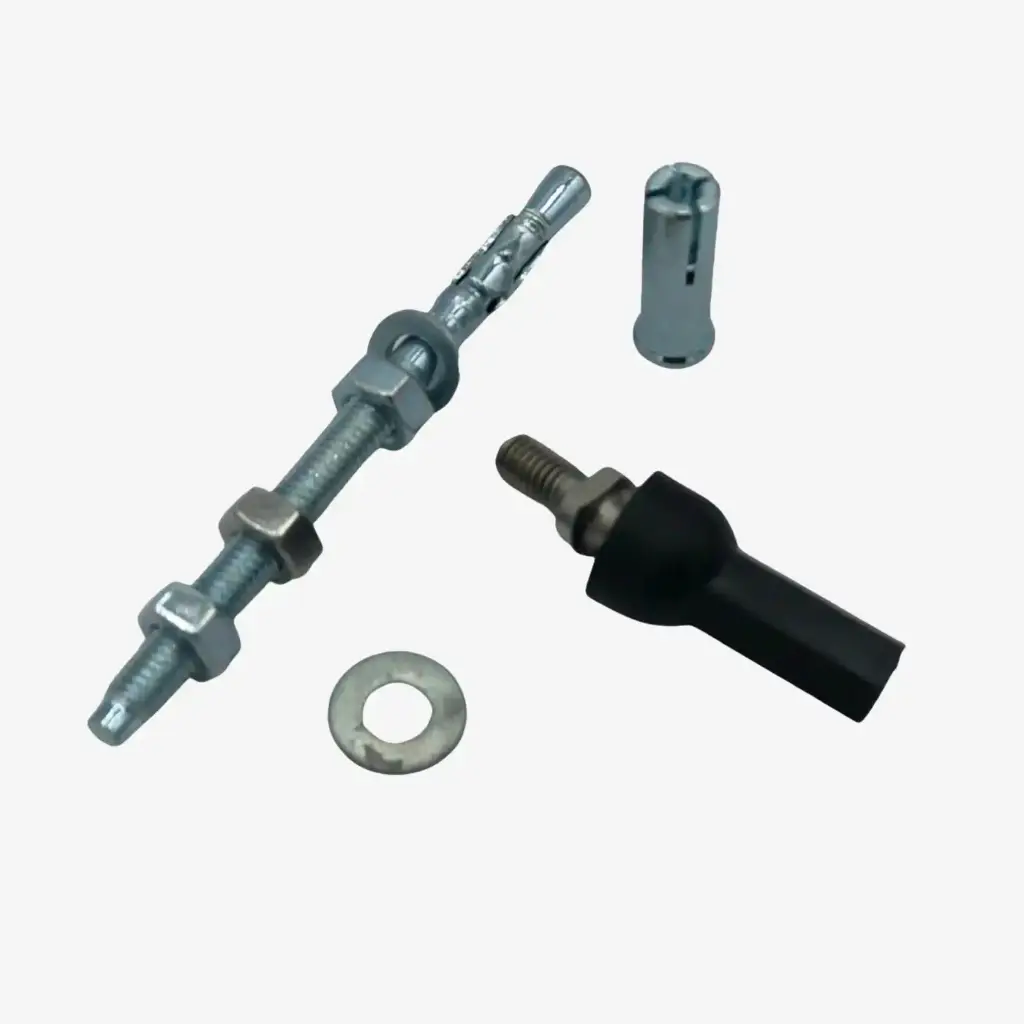

Fixation Pack 7

Angle Support with Studs for Delta L+

This support is specifically designed for the installation of a crack sensor DELTA L+ on solid supports such as concrete, brick, or stone.

Features:

• Fixation by galvanized drive pins for a robust and durable anchor.

• Installation of pins:

  • Drilling Ø6 mm in the material.
  • Inserting the pin with a hammer.
  • Tightening the nut (10mm wrench) to secure the pin in place.
  • Precaution: Avoid striking the pin head too hard and ensure the nut is tight to achieve optimal anchorage.
  • Removal: Requires cutting the pin flush with a grinder, leaving the metal in the material.

• Installation of the female socket:

  • Drilling Ø8 mm.
  • Full insertion of the socket into the support (it must be flush).
  • Locking by striking with a striking tool or, if necessary, a fine screwdriver.

• Fixing the ball joint:

  • Screws onto the female socket with a 8mm wrench, ensuring a precise and secure adjustment.
