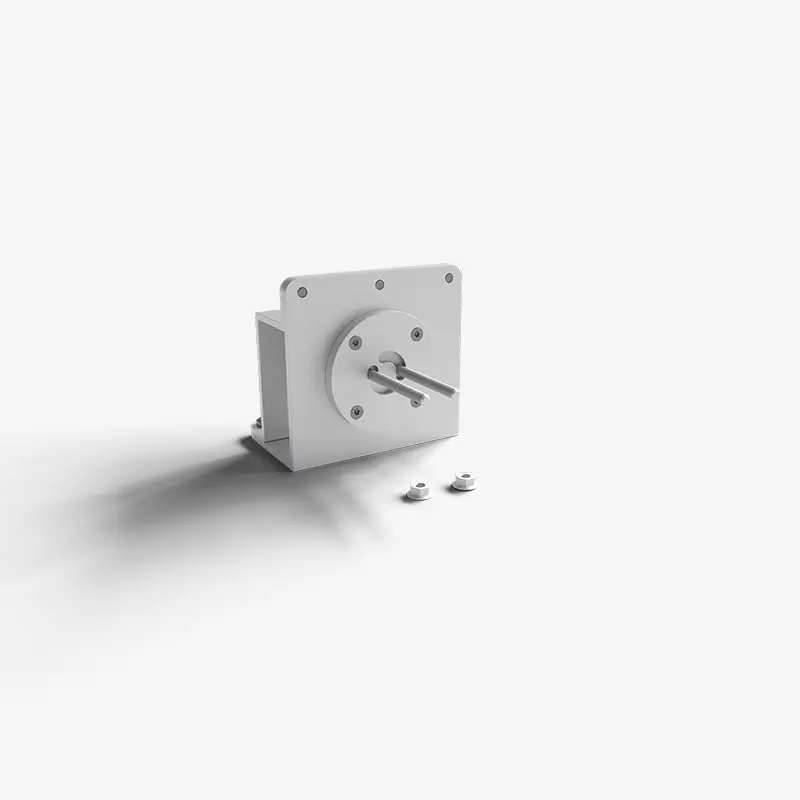

DLLR inclinometer beam attachment
- 8 vis 6.0x8.0 - TORX 30 (6 de fermeture + 2 de blocage de l'accroche)
- 2 écrous à embase lisse M6 inox A2
- 4 vis 4.0x12.0 - TORX 20 - inox A2
- 1 support de fixation en Z - aluminium - pré-percée
- 1 support de fixation en L - aluminium - pré-percée
- 1 goujon double fileté M6 fixé sur platine ronde
- 1 bride de fixation circulaire aluminium
- 1 rondelle d'ajustement aluminium (arrière à la bride)
In Brief
See all features
Simple or linked wall installation, Modular assembly beams from 0.5 to 4 m
Autonomy From 1 to 7 years depending on the chosen frequency
Angular resolution 0,01°
Measurement range ±30° (+ou-10°)
Secured
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and easy-to-use mobile app to continuously monitor all your structures.
Plug & Play
Easy to install, from a few minutes to a few seconds, your sensors are fixed to all types of materials!
Inclinometric line
The inclinometric line allows for continuous measurement of horizontal deformations with millimetre precision. It provides a comprehensive view of displacements over the entire instrumented height, making it ideal for sensitive structures or deep foundations.
Installed permanently in an inclinometer tube, the chain operates without regular human intervention. It is a reliable alternative to manual measurements, ideal for long-term or hard-to-reach sites.
Designed with aluminium beams articulated on two axes, the line adapts to the variations of the structure. The elements assemble quickly, without specific tools, and can be linked together to cover long lengths.
Supply
Battery 3,6V - 2,6Ah
Measurement, Precision, Resolution
Measurement range ±30° (+ou-10°)
Angular precision 0,005°
Angular resolution 0,01°
Connectivity
Réseau LPWAN
Bluetooth
Internal memory
Up to 250,000 measurements
Dimensions & Weight
Modular assembly beams from 0.5 to 4 m
Protection
IP66 (Dust-tight and protected against heavy water jets)
Les éléments de la ligne inclinométrique
