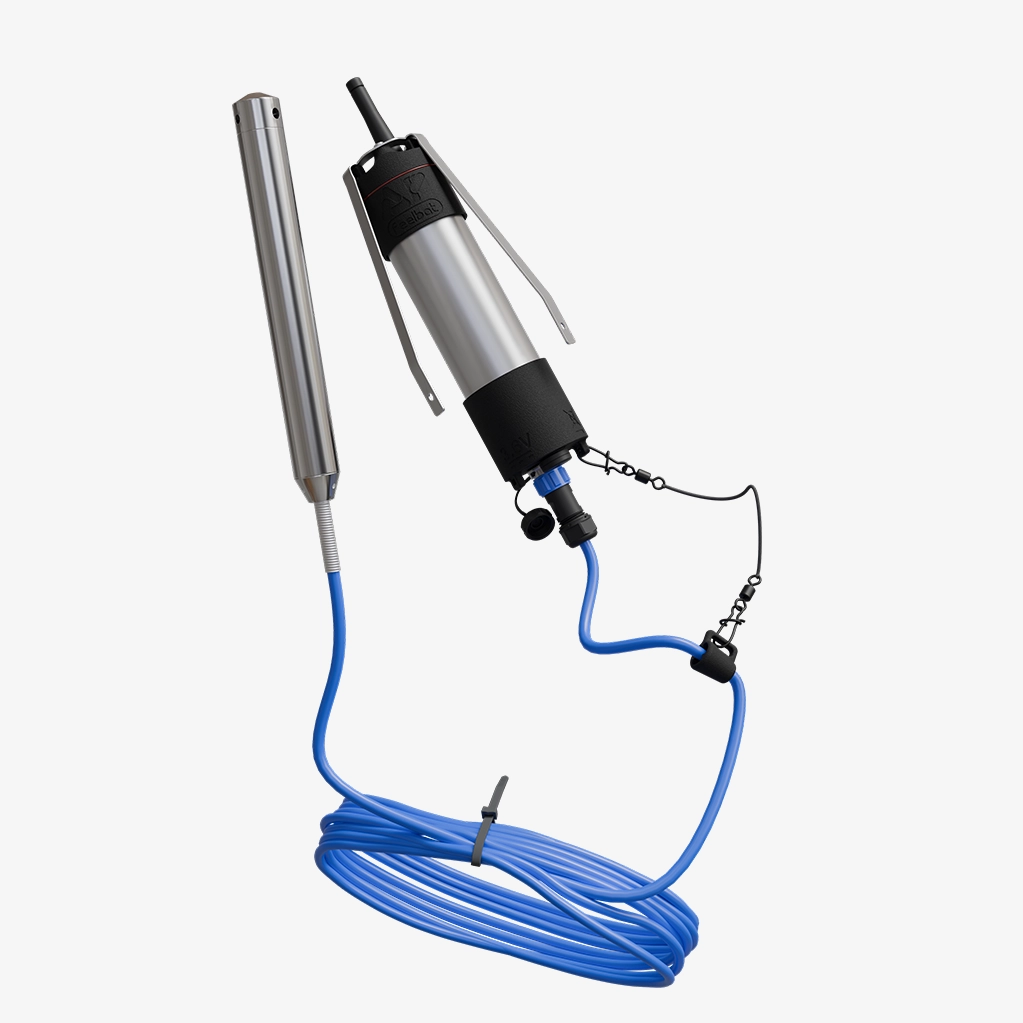

DELTA P2 with 20 m probe ll Groundwater level monitoring

The submerged piezometric probe allows for discreet monitoring of the evolution of groundwater levels.

Thanks to its compact format and discreet installation, it is less exposed to the risks of theft or damage.

Its passivated 316L stainless steel body ensures robustness and durability, while the reinforced cable is equipped with waterproof connectors and a system for atmospheric pressure equalisation.

Several lengths available

999.00 € 999.00 € Tax Excluded
999.00 € Tax Excluded

​

Discover the
Delta Pin action!

Customer Case: Water level monitoring


*


Download the client case

In Brief
See all features


​ Installation time 15 min

Battery life From 1 to 7 years depending on the chosen frequency

​ Accuracy < 0.3 % FS

    Groundwater levels, outside temperature

Secure

Monitor all your infrastructures and soils remotely and continuously with our connected sensors and receive alerts in case of issues.

Connected

Connect your sensors directly to a free and easy-to-use mobile application to continuously monitor all your data.

Plug & Play

Easy to install, it allows for remote data collection or via Bluetooth, thus eliminating the need for human intervention to remove the probe.

Piezometric probe

connected

Download the product sheet

The DELTA XP is a sensor equipped with a submerged piezometric probe, designed to accurately measure groundwater level variations. Thanks to its leveling chamber for atmospheric pressure and its passivated 316L stainless steel body, it ensures reliable measurements even in demanding environments. Robust, precise, and resistant (IP66), the DELTA XP meets the needs of professionals requiring rigorous and continuous water resource monitoring.

Connected to the FEELBAT mobile app, it allows you to monitor and analyse measurement data in real-time directly from your smartphone. Thanks to an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customisation options to adjust the settings according to specific needs.

Manage and centralise your projects for quicker and more informed decision-making, even on the go.

No more need to spend hours on your reports! In just a few clicks, you can  generate customised PDFs to your liking and according to your needs.

Automatic compensation for atmospheric pressure for better accuracy


One of the major advantages of the DELTA X-P lies in its ability to integrate atmospheric pressure into its measurements, ensuring optimal accuracy. Unlike traditional automatic sensors, which require a second instrument to measure atmospheric pressure or regular removal for adjustment and data retrieval on PC, the DELTA X-P operates continuously, thus reducing field interventions by several hours.

Power Supply

Battery 3.6V - 17 Ah
Autonomy 1 to 7 years

Measurement, Accuracy, Resolution
Dérive en t° (0 ° à 40 °C) < ± 0,03 % PE / °C



Connectivity

LPWAN network
Bluetooth


Internal memory

Up to 250,000 measurements


Dimensions & Weight
​Dimension sonde Ø 2 x 17 cm

Dimension boitier Ø 5 x 21 cm


Protection

Probe IP66

Included in the pack

  • 1 DELTA P sensor
  • 1 Lithium type D 3.6 V battery with connector
  • 1 articulated arm + 3 screws
  • 1 removable external antenna
  • 1 anti-tension protective clamp
  • 1 additional seal for battery replacement
  • 1 piezometric probe with 20 M cable​

 Tips for fixing

Warning, the fixing pack is not included


  • TORX T20 Key

  • Manual water level measuring tape

Included in the pack

  • 1 DELTA P sensor
  • 1 pile Lithium type D 3,6 V avec connecteur
  • 1 bras articulé + 3 vis
  • 1 antenne externe amovible
  • 1 bride de protection anti-traction
  • 1 joint supplémentaire pour changement de pile
  • 1 sonde piézométrique avec câble de 10 M​

 Conseils pour fixation

Attention, le pack de fixation n'est pas inclus


  • TORX T20 Key

  • Manual water level measuring tape

Discover the fixing packs

PEHD keyhole

This keyhole in HDPE protects and integrates the DELTA P for monitoring groundwater, while allowing for discreet installation and the remote data transmission in real time.


Pack 2 of fixing X-P

The fixing pack X-P is a complete solution for installing and securing your sensor DELTA X-P in outdoor or industrial environments. It includes all the necessary elements for stable fixing and protection against external elements.
