DELTA X-Hs || Monitoring soil moisture
Connected probe for monitoring soil moisture variations
The DELTA X-Hs is a connected sensor equipped with an electronic probe. This system allows precise and autonomous measurement of soil moisture. The probe, to be buried at the base of structures, provides relevant data for effective diagnostics in the field of SHR (Soil Heave and Shrinkage).
Values are expressed as a percentage of water content with a precision of 0.1%.
To summarize
View all features
Installation time 15 min
Battery life From 1 to 7 years depending on the selected frequence
Résolution 1%
Logger DELTA X
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and user-friendly mobile application to continuously monitor all your structures.
Plug & Play
Easy to install, it enables remote data collection via Bluetooth, eliminating the need for human intervention to remove the probe.

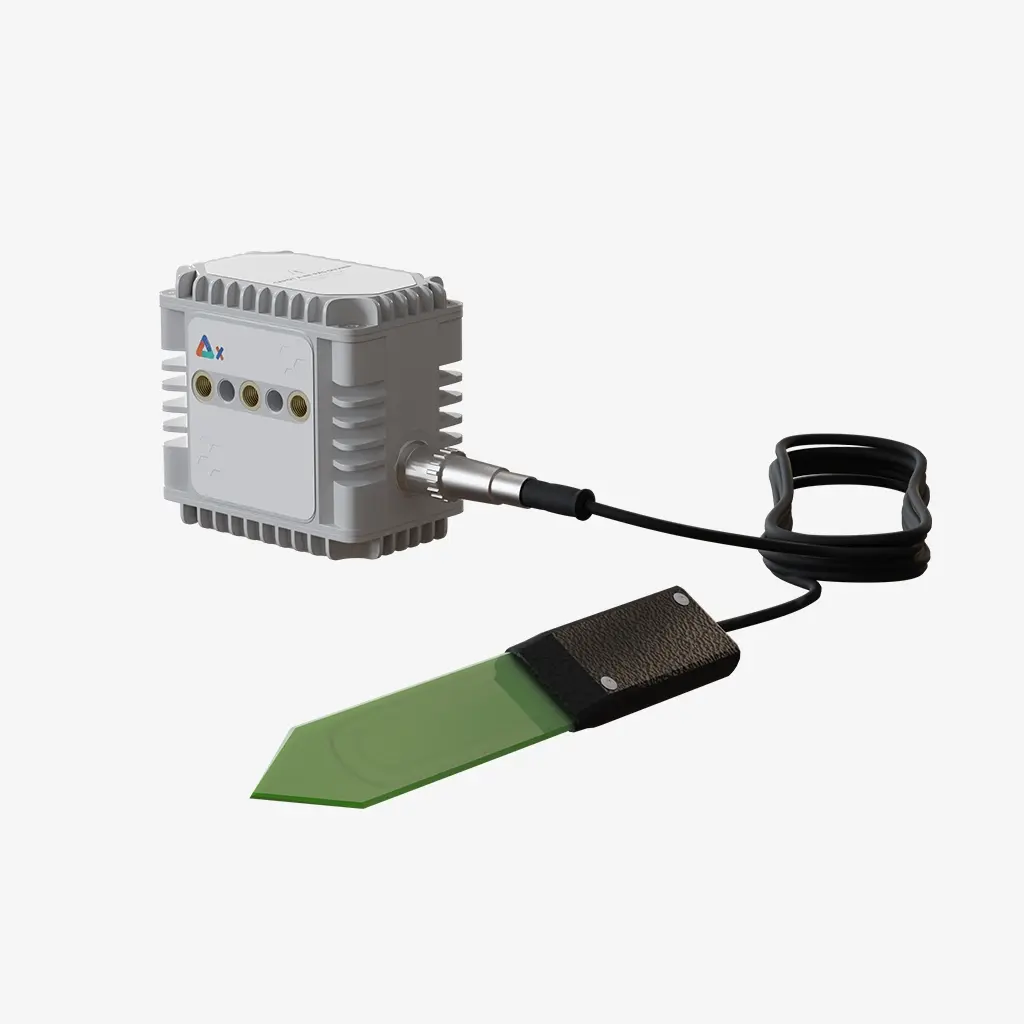

The Connected Probe
The DELTA XH is an innovative sensor equipped with an electronic probe that measures soil moisture variation with high precision. Thanks to a measurement range from 0 to 60% water content and its robust design (IP66), it is ideal for reliable diagnostics in demanding environments, particularly in the context of soil shrinkage and swelling (RGA). Buried at the base of structures, the DELTA XH probe provides precise and continuous data to efficiently monitor your infrastructures.
Connected to the FEELBAT mobile app, it allows you to monitor and analyse measurement data in real time directly from your smartphone. Thanks to an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customisation options to adjust the settings according to specific needs.
Manage and centralise your projects for quicker and more informed decision-making, even on the go.
No more spending hours on your reports! With just a few clicks, you can generate customized PDFs tailored to your brand and needs.
GThanks to our technology, the X-H probe remains in place in the ground, eliminating the need to remove it to retrieve measurements.
The data is accessible remotely or via Bluetooth, reducing human intervention and optimizing continuous monitoring.
This approach limits handling, enhances safety, and facilitates maintenance.
Power Supply
Batterie 3,6V - 17Ah
Autonomy 1 à 7 ans
Measurement, Precision, Resolution
Resolution 1%
Precision 3% up to 50 vwc (Volumetric Water Content)
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250,000 measurements
Dimensions & Weight
Probe 18.2 cm x 3 cm x 1.2 cm
Probe cable length 10 m
Protection
IP66
Included in the pack
1 DELTA X logger housing with waterproof connector
1 moisture content probe with a 10m cable and waterproof connector
4 stainless steel locking screws 6 mm
1 galvanised wall mounting bracket
Integrated connectivity
2 multi-material nylon plugs
2 stainless steel screws A2 5.5 x 70 mm
2 A2 stainless steel washers Ø6 mm
Installation guidelines
TORX T20 Key
Ø drilling 10 mm for nylon plug
TORX T30 key for locking screws
PH3 crosshead screwdriver
