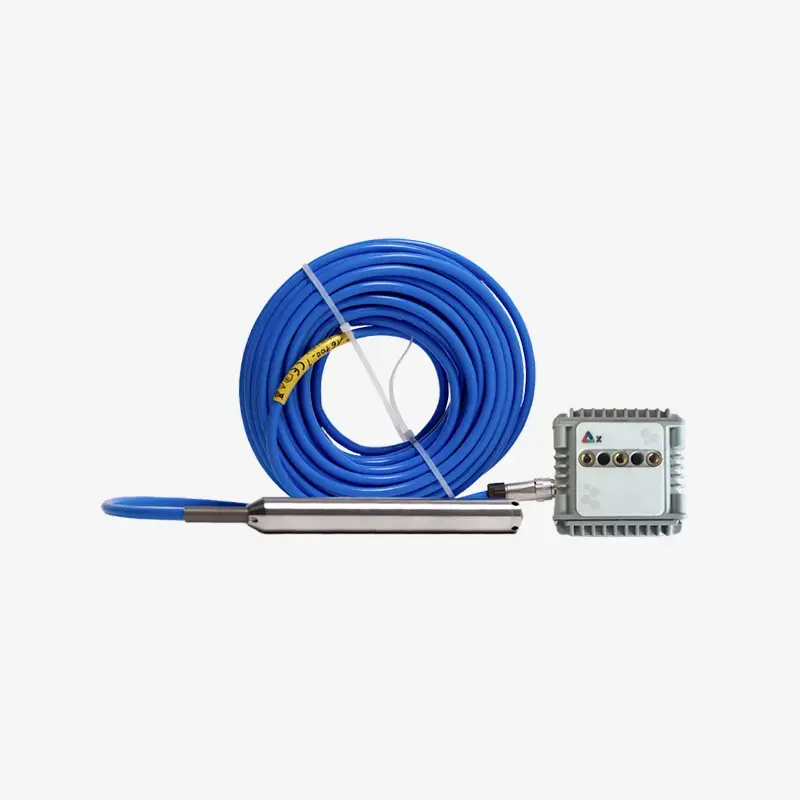

DELTA X-P with 10ML Piezometric Probe || Groundwater level monitoring
Connected Piezometric Probe
The X-P sensor comes with a submerged piezometric level probe to measure and track water level changes. The probe body is made of passivated 316L stainless steel, and the reinforced 10ML cable features a waterproof connector. The probe must be connected to the DELTA X sensor via the waterproof connector.
Attention, the mounting pack is not included.
To summarize
View all features
Installation time 15 min
Battery life From 1 to 7 years depending on the selected frequency
Accuracy ± 0,3 % PE
Groundwater levels, outside temperature
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and user-friendly mobile application to continuously monitor all your structures.
Plug & Play
Easy to install, it enables remote data collection via Bluetooth, eliminating the need for human intervention to remove the probe.
The DELTA XP is a sensor equipped with a submerged piezometric probe, designed to accurately measure groundwater level variations. Thanks to its leveling chamber for atmospheric pressure and its passivated 316L stainless steel body, it ensures reliable measurements even in demanding environments. Robust, precise, and resistant (IP66), the DELTA XP meets the needs of professionals requiring rigorous and continuous water resource monitoring.
Connected to the FEELBAT mobile app, it allows you to monitor and analyse measurement data in real-time directly from your smartphone. Thanks to an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customisation options to adjust the settings according to specific needs.
Manage and centralise your projects for quicker and more informed decision-making, even on the go.
No more need to spend hours on your reports! In just a few clicks, you can generate personalised PDFs tailored to your image and needs.
One of the key advantages of the DELTA X-P is its ability to integrate atmospheric pressure into its measurements, ensuring optimal accuracy. Unlike traditional automatic sensors, which require a second instrument to measure atmospheric pressure or need to be regularly removed for adjustment and data retrieval via PC, the DELTA X-P operates continuously, significantly reducing on-site intervention time by several hours.
Power Supply
Battery 3,6V - 17 Ah
Autonomy 1 to 7 years
Measurement, Precision, Resolution
Temperature drift < +/- 0.02% of PE / °C Value given for PE > 4 m, drift (-20 to +60 °C) +/- 0.03% of PE / °C
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250,000 measurements
Dimensions & Weight
Diameter probe 21.4 mm +/- 0.1 mm length 170 mm +/- 0.2 mm
Protection
Probe IP66
Included in the pack
- 1 DELTA X logger box
- 1 piezometric probe with a 10 m cable
Installation guidelines
Warning, the fixing pack is not included
TORX T20 Key
Discover the fixing packs
X-P Fixing Pack 1
The X-P mounting kit is a complete solution for installing your DELTA X-P sensor in outdoor environments. This kit includes all the necessary components for optimal installation, ensuring a stable fixture.
Pack 2 of X-P fixing
The X-P mounting kit is a complete solution for installing and securing your DELTA X-P sensor in outdoor or industrial environments. It includes all the necessary components for stable mounting and protection against external elements.
