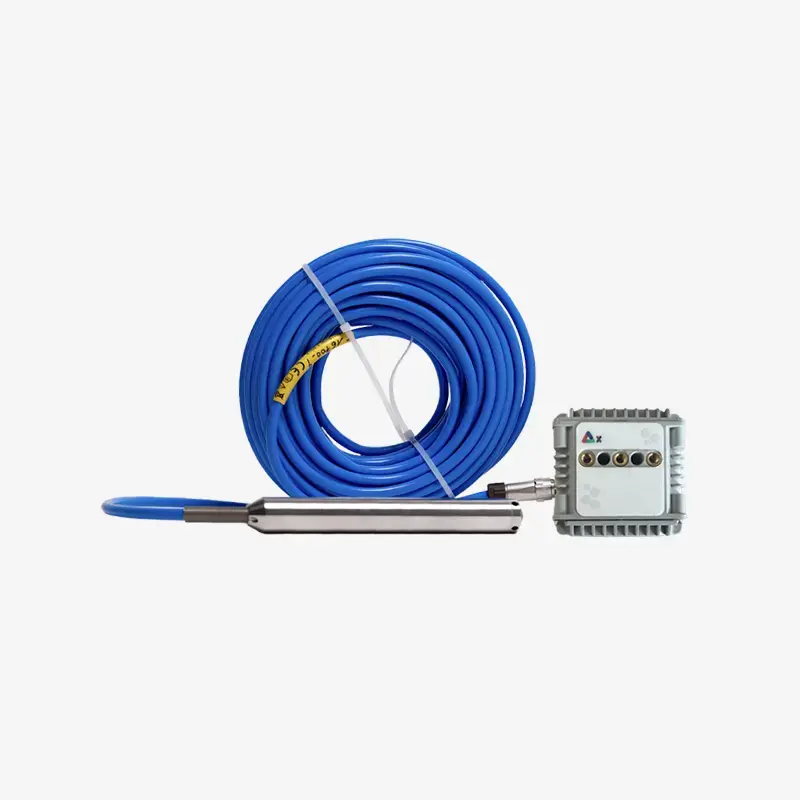

DELTA X-P with 15ML piezometric probe || Groundwater monitoring

Connected piezometric probe

The X-P sensor comes with a submerged piezometric level probe to measure and monitor water level changes. The probe body is made of passivated 316L stainless steel, and the reinforced 15 m cable includes a waterproof connector. The probe must be connected to the DELTA X sensor via the waterproof connector.

Please note, the fastening pack is not included.

This product is no longer available.


Discover the
Delta X-P in action!

Customer Case: Water level monitoring


*


Download the case study

To summarize
View all features


   Installation time 15 min

  Battery life From 1 to 7 years depending on the selected frequency

   Drift in ° < ±0.02% FS / °C Value given for FS > 4 m, drift (-20 to +60 °C) ±0.03% FS / °C


   Measures: Groundwater levels, external temperature

Secure

Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.

Connected

Connect your sensors directly to a free and user-friendly mobile application to continuously monitor all your structures.

Plug & Play

Easy to install, it enables remote data collection via Bluetooth, eliminating the need for human intervention to remove the probe.

Piezometric probe

connected

Download the product sheet

The DELTA XP is a sensor equipped with a submerged piezometric probe, designed to accurately measure groundwater level variations. Thanks to its leveling chamber for atmospheric pressure and its passivated 316L stainless steel body, it ensures reliable measurements even in demanding environments. Robust, precise, and resistant (IP66), the DELTA XP meets the needs of professionals requiring rigorous and continuous water resource monitoring.

Connected to the FEELBAT mobile application, it allows you to track and analyze measurement data in real-time directly from your smartphone. Thanks to an intuitive and user-friendly interface, the application provides easy access to detailed information while offering customization options to adjust settings according to specific needs.

Manage and centralize your projects for faster and more informed decision-making, even on the go.​

No more spending hours on your reports! With just a few clicks, you can generate customized PDFs tailored to your brand and needs.

​


One of the key advantages of the DELTA X-P is its ability to integrate atmospheric pressure into its measurements, ensuring optimal accuracy. Unlike traditional automatic sensors, which require a second instrument to measure atmospheric pressure or need to be regularly removed for adjustment and data retrieval via PC, the DELTA X-P operates continuously, significantly reducing on-site intervention time by several hours.

Power Supply

Battery 3,6V - 17 Ah
Autonomy 1 to 7 years

Measurement, Precision, Resolution

Temperature drift < ±0.02% FS / °C Value given for FS > 4 m, drift (-20 to +60 °C) ±0.03% FS / °C


Connectivity

LPWAN Network
Bluetooth


Internal Memory

Up to 250,000 measurements


Dimensions & Weight

Probe diameter 21.4 mm ± 0.1 mm Length 170 mm ± 0.2 mm


Protection

Probe IP66

Included in the pack

  • 1 DELTA X logger box with integrated connector

  • 1 piezometric probe with 15 m cable

 Installation advice

The fixing pack is not included

  • TORX T20 keys
