To summarize
View all features
Installation time 5 min
Battery life From 1 to 4 years depending on the selected frequency
Resolution 0.01 mm – 1 °C
Measurement range 0 to 100 mm
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of any issues.
Connected
Connect your sensors directly to a free and easy-to-use mobile application to monitor all your structures in real-time.
Plug & Play
Easy to install, in just a few minutes or even seconds, your sensors can be mounted on all types of materials!

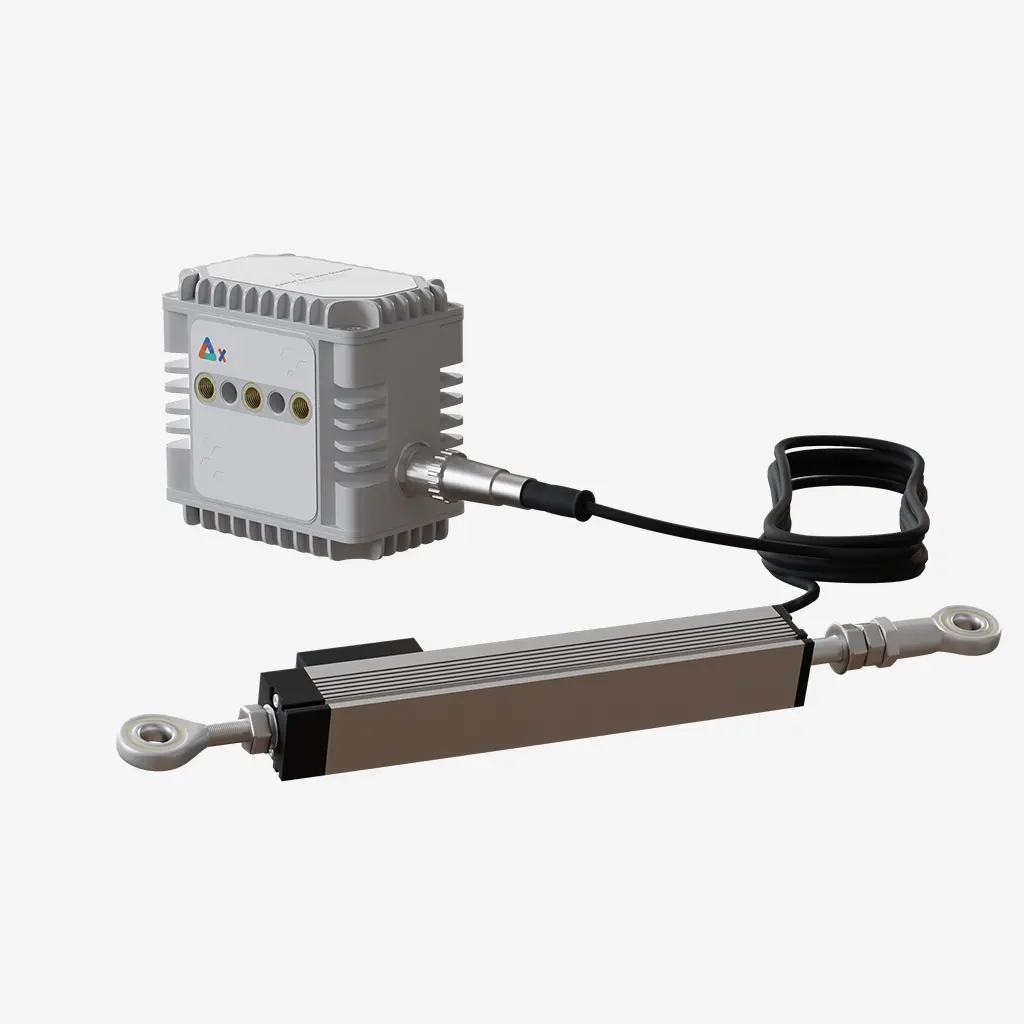

Connected Crack Meter for Large-Amplitude Cracks
The DELTA X-L100 is designed to precisely monitor crack movements with a displacement range of 0 to 100 mm. Equipped with a displacement sensor and specific joints for easy fixation at the ends, it combines precision and robustness in all conditions. Compact and IP65-resistant, it is perfectly suited to the needs of demanding projects.
Thanks to an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customization options to adjust parameters according to specific needs. Connected to the FEELBAT mobile application, it allows you to monitor and analyze measurement data in real-time directly from your smartphone.
Manage and centralize your projects for faster and more informed decision-making, even on the go.
No more wasting hours on your reports! In just a few clicks, you can generate customized PDFs tailored to your brand and specific needs.
The DELTA X-L100 is designed for simplified installation thanks to its durable polycarbonate casing and adjustable joints. Its reinforced 3-meter cable and waterproof connection ensure exceptional durability, even in challenging environments. With a battery life of up to 4 years*, it stands out as a reliable and long-lasting solution for crack monitoring. (*Depending on usage)
Power Supply
battery 3,6V - 17Ah
battery life 1 to 7 years
Accuracy, Resolution
Accuracy : 0,01 mm / 1°C
Resolution : 5 µm - 0,5 °C (±)
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250 000 measurements
Dimensions
Crack meter size 175 mm
Cable length 2 m
Protection
IP66
Included in the pack
1 DELTA X sensor
D Batteries 3.6v
Stainless Steel U Shoe
4 screws M6 x 8, stainless steel A2
2 universal plugs 10 x 60, NYLON
2 wood screws with rounded head 6 x 70, A2 stainless steel
2 flat washers M6, stainless steel A2
1 potentiometric probe
2 hexagon socket head screws with flange, M5 x 35, A2 stainless steel
2 spacers M5, stainless steel A2
2 Nylstop M5 nuts, stainless steel A2
2 DELTA FIX
8 PZ M5 hammer-in plugs, Zinc-coated steel
Mounting advice
CAUTION – the fasteners have a Ø 5 mm diameter at the ball joints
Screwdriver T20
T30 screwdriver for locking screws
TORX 25 screwdriver
Ø 10 mm drilling for nylon anchor
PH3 Phillips screwdriver
8mm flat spanner
Allen Key 3
