DDELTA X-Rain action!
Client Case: Monitoring within the RGA framework
*
To summarize
View all features
Installation time 5 min
Battery life From 1 to 7 years depending on the selected frequence
Resolution0.2 mm
Logger DELTA X
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and user-friendly mobile application to continuously monitor all your structures.
Plug & Play
Easy to install, it enables remote data collection via Bluetooth, eliminating the need for human intervention to remove the probe.

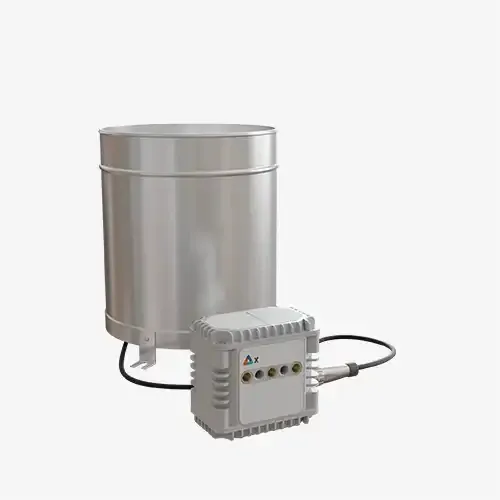

Connected rain gauge
The DELTA X-Ra is a connected tipping bucket rain gauge designed to measure precipitation accurately and reliably.Robust (IP66) and with a resolution of 0.2 mm, it ensures continuous rainfall monitoring. Connected via Bluetooth and LPWAN, it transmits data in real-time for monitoring soils, structures, and climatic phenomena.
Connected to the FEELBAT mobile app, it allows you to monitor and analyse measurement data in real time directly from your smartphone. Thanks to an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customisation options to adjust the settings according to specific needs.
Manage and centralise your projects for quicker and more informed decision-making, even on the go.
No more spending hours on your reports! With just a few clicks, you can generate customized PDFs tailored to your brand and needs.
Ideal for monitoring in the context of RGA (shrink-swell of clays), the DELTA X-Ra allows for the analysis of the impact of precipitation on soils. Combined with connected crack meters and soil moisture sensors, it provides precise data correlation to better understand structural movements and anticipate risks.
Power Supply
Batterie 3,6V - 17Ah
Autonomy 1 à 7 ans
Accuracy, Resolution
Resolution0.2 mm
Accuracy≤ ±3%
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250,000 measurements
Measurements
Large range of intensity0 to 4 mm/min
Ø rain collection surface200 mm
Continuous measurementconsumption < 100uW
Protection
IP66
Included in the pack
1 DELTA X logger housing with waterproof connector
1 rain gauge housing
4 stainless steel locking screws 6 mm
1 galvanised wall mounting bracket
2 multi-material nylon plugs
2 stainless steel screws A2 5.5 x 70 mm
2 A2 stainless steel washers Ø6 mm
Installation guidelines
TORX T20 Key
Ø drilling 10 mm for nylon plug
TORX T30 key for locking screws
PH3 crosshead screwdriver
