To summarize
View all features
Installation time 5 min
Autonomy From 1 to 7 years depending on the chosen frequency
Precision 0.005° - 0.5 T
4 modes of inclination measurement on two axes (X and Y), followed by temperature
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of problems.
Connected
Connect your sensors directly to a free and easy-to-use mobile app to continuously monitor all your structures.
Plug & Play
Easy to install, in just a few minutes to a few seconds, your sensors are fixed to all types of materials! (concrete, stone, metal, wood, etc.)

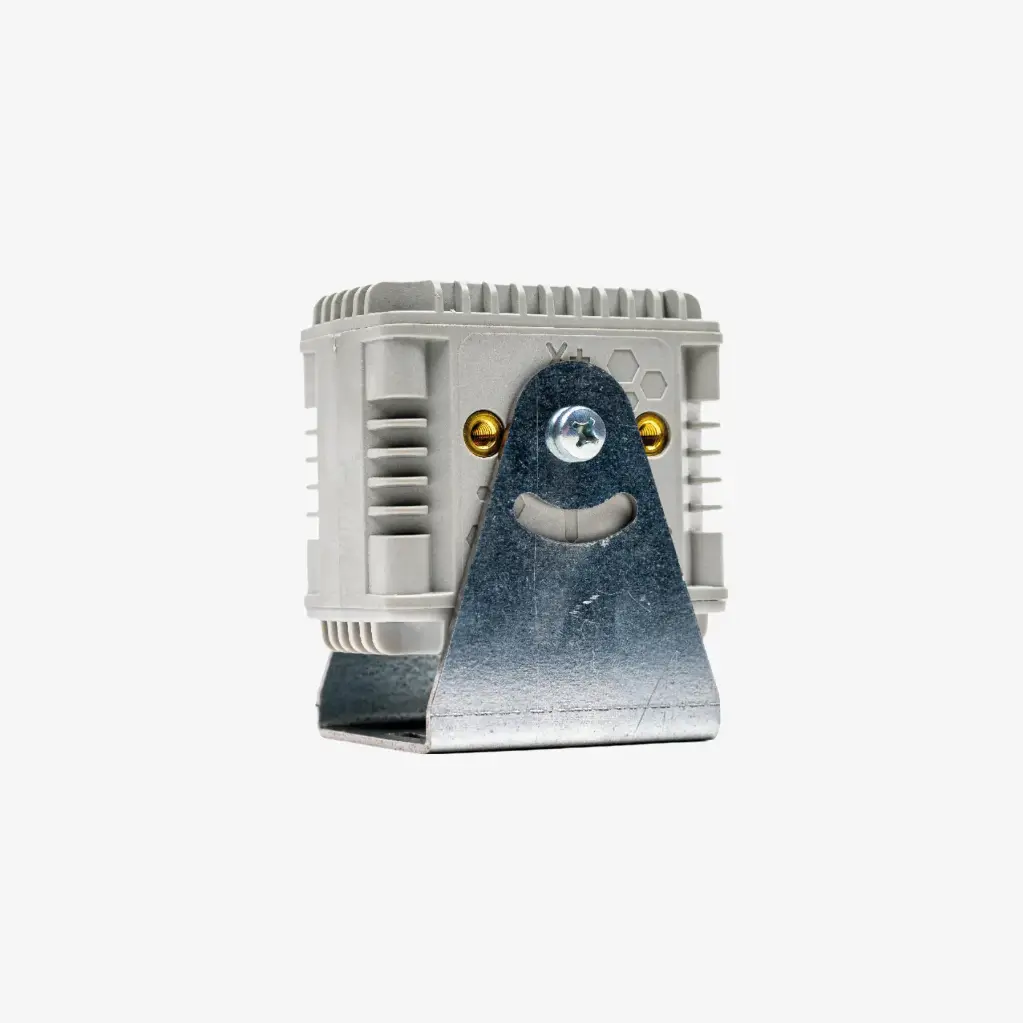

The DELTA R is a biaxial tilt sensor designed to monitor the movements of structures and walls with high precision.
With a resolution of 0.005° and a measurement range of up to ±10°, it stands out as a robust and reliable solution, even in the most demanding environments. Compact and durable (IP66 protection), the DELTA R is your ally for rigorous, continuous, and remote monitoring.
Connected to the FEELBAT mobile app, it allows you to monitor and analyze measurement data in real time directly from your smartphone. With an intuitive and user-friendly interface, the app provides easy access to detailed information while offering customization options to adjust settings according to specific needs.
Manage and centralize your projects for faster, more informed decision-making, even while on the go.
No more wasting hours on your reports! In just a few clicks, you can generate personalized PDFs tailored to your needs and preferences.
The DELTA R easily attaches to different types of supports to provide you with a measurement on two axes.
Lightweight (350 g) and autonomous (up to 7 years of battery life with a single battery), it is designed to be quickly operational. Its robust design and patented system ensure simple and reliable installation, for immediate monitoring of your infrastructures.
Power Supply
Batteries 3,6V-17Ah
Precision, Resolution
Precision : 0,005° angle / 0,5° T
Resolution : 0,01° - 1°
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250,000 measurements
Dimensions & Weight
Dimensions : 8x8 cm; Thickness 5 cm
Weight : 350g
Protection
IP66
Included in the pack
- 1 capteur DELTA R
- 1 pile D 3,6v
- 1 sabot U Inox 4 vis M6 x 8, INOX A2
- 2 chevilles universelles 10 x 60, NYLON
- 2 vis à bois tête bombée 6 x 70, INOX A2
- 2 rondelles plates M6, INOX A2
Conseils pour fixation
Tournevis T20
Percement Ø10 mm pour cheville nylon
Tournevis T30 pour vis de maintien
Tournevis T25
Poire soufflante
Magnetic support (PF8)
Other Products
that might interest you
FEELBAT develops connected sensors to provide you with solutions for monitoring cracks, tilt, humidity, etc. remotely and continuously.
From installation to data analysis, we support you in the monitoring of structures (SHM - Structural Health Monitoring).
