To summarize
View all features
Simple wall-mounted or chained installation, Modular beam assembly from 0.5 to 4 m
Battery life From 1 to 7 years depending on chosen frequency
Angular resolution 0,01°
Measurement range ±30° (or ±10°)
Secure
Monitor all your infrastructures remotely and continuously thanks to our connected sensors, and receive alerts in case of issues.
Connected
Connect your sensors directly to a free, user-friendly mobile app to monitor all your structures continuously.
Plug & Play
Easy to install – from a few minutes to a few seconds, your sensors can be mounted on any type of material.
Inclinometric Line
The inclinometric line allows continuous measurement of horizontal deformations with millimetric precision. It provides a complete view of displacements along the entire instrumented height — ideal for sensitive structures or deep foundations.
Permanently installed inside an inclinometric tube, the chain operates without the need for regular human intervention. It offers a reliable alternative to manual measurements, ideal for long-term projects or hard-to-reach areas.

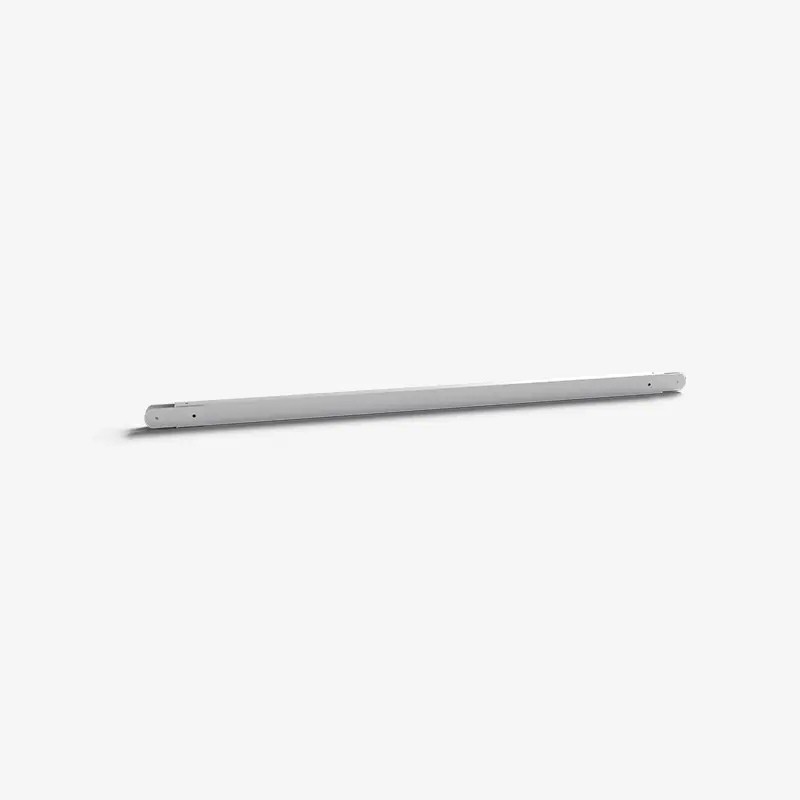

Designed with aluminium beams articulated on two axes, the line adapts to structural variations. The elements can be assembled quickly without special tools and chained together to cover long distances.
Supply
Battery 3,6V - 2,6Ah
Measurement, Precision, Resolution
Measurement range ±30° (+ou-10°)
Angular precision 0,005°
Angular resolution 0,01°
Connectivity
LPWAN Network
Bluetooth
Internal memory
Up to 250,000 measurements
Dimensions & Weight
Modular assembly beams from 0.5 to 4 m
Protection
IP66 (Dust-tight and protected against heavy water jets)
Included in the pack
- 1 DELTA P sensor
- 1 pile Lithium type D 3,6 V avec connecteur
- 1 bras articulé + 3 vis
- 1 antenne externe amovible
- 1 bride de protection anti-traction
- 1 joint supplémentaire pour changement de pile
- 1 sonde piézométrique avec câble de 10 M
Conseils pour fixation
Attention, le pack de fixation n'est pas inclus
TORX T20 Key
Manual water level measuring tape
Discover the fixing packs
PEHD keyhole
This keyhole in HDPE protects and integrates the DELTA P for monitoring groundwater, while allowing for discreet installation and the remote data transmission in real time.
Pack 2 of fixing X-P
The fixing pack X-P is a complete solution for installing and securing your sensor DELTA X-P in outdoor or industrial environments. It includes all the necessary elements for stable fixing and protection against external elements.
