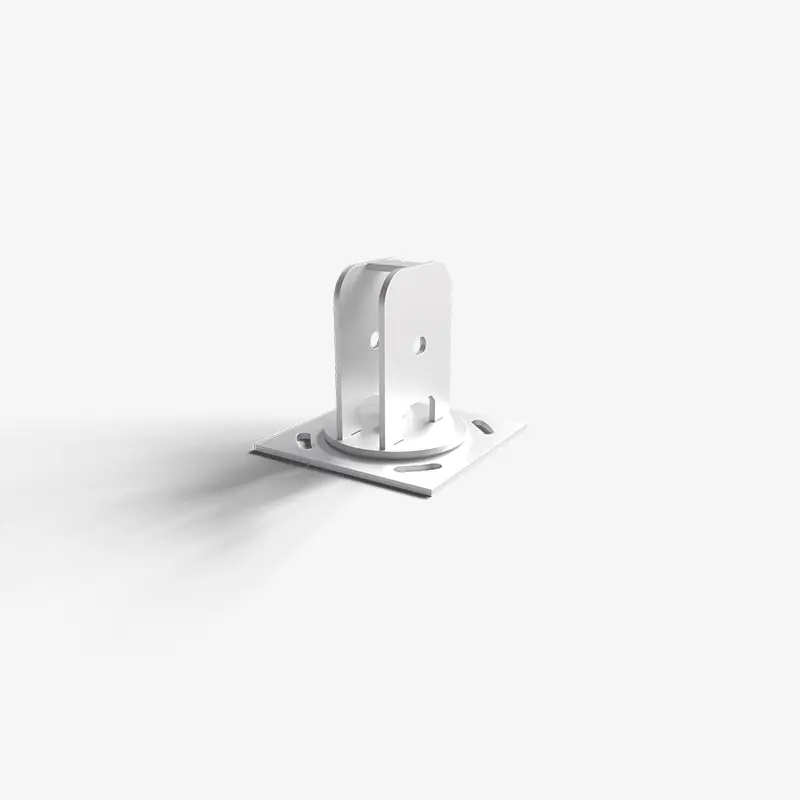

Inter-segment joint for inclinometric line – Underside mounting
Bi-axial joint for inclinometric line segments
This 2-axis joint is designed to connect two inclinometric line segments while allowing flexible movement. Ideal for underside mounting.
- - 1 hex head screw M10 × 60 – stainless steel A2
- - 1 M10 nut – stainless steel A2
- - 2 low-profile M10 nuts – stainless steel A2
- - 1 M8 nut – stainless steel A2
- - 1 fixed base 130 × 130 mm with welded M6 × 20 mm threaded rod + 4 slotted holes Ø9 mm
- - 1 Teflon disc – Ø93 mm, pre-drilled Ø10 mm
- - 4 Teflon discs – Ø70 mm, pre-drilled Ø12 mm
In brief
See all features
Simple or linked wall installation, Modular assembly beams from 0.5 to 4 m
Autonomy From 1 to 7 years depending on the chosen frequency
Angular resolution 0,01°
Measurement range ±30° (+ou-10°)
Secured
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and easy-to-use mobile app to continuously monitor all your structures.
Plug & Play
Easy to install, in just a few minutes to a few seconds, your sensors are fixed to all types of materials!
Inclinometric line
The inclinometric line allows for continuous measurement of horizontal deformations with millimetre precision. It provides a comprehensive view of displacements over the entire instrumented height, making it ideal for sensitive structures or deep foundations.
Installed permanently in an inclinometer tube, the chain operates without regular human intervention. It is a reliable alternative to manual measurements, ideal for long-term or hard-to-reach sites.
Designed with aluminium beams articulated on two axes, the line adapts to the variations of the structure. The elements assemble quickly, without specific tools, and can be linked together to cover long lengths.
Supply
Battery 3,6V - 2,6Ah
Measurement, Precision, Resolution
Measurement range ±30° (+ou-10°)
Angular precision 0,005°
Angular resolution 0,01°
Connectivity
LPWAN Network
Bluetooth
Internal memory
Up to 250,000 measurements
Dimensions & Weight
Modular assembly beams from 0.5 to 4 m
Protection
IP66 (Dust-tight and protected against heavy water jets)
The elements of the inclinometer line
Want to know more? Call us!
Other Products
that might interest you
